Liquid Crystal Display (LCD):
16x2 LCD can be interfaced with microcontroller in 4 Bit or 8 Bit mode. These differs in how data is send to LCD. In 8 bit mode to write a character, 8 bit ASCII data is send through the data lines D0 – D7 and data strobe is given through E of the LCD. LCD commands which are also 8 bit are written to LCD in similar way.But 4 Bit Mode uses only 4 data lines D4 – D7. In this mode 8 bit character ASCII data and command data are divided into two parts and send sequentially through data lines. The idea of 4 bit communication is used save pins of microcontroller. 4 bit communication is a bit slower than 8 bit communication but this speed difference can be neglected since LCD's are slow speed devices. Thus 4 bit mode data transfer is most commonly used.

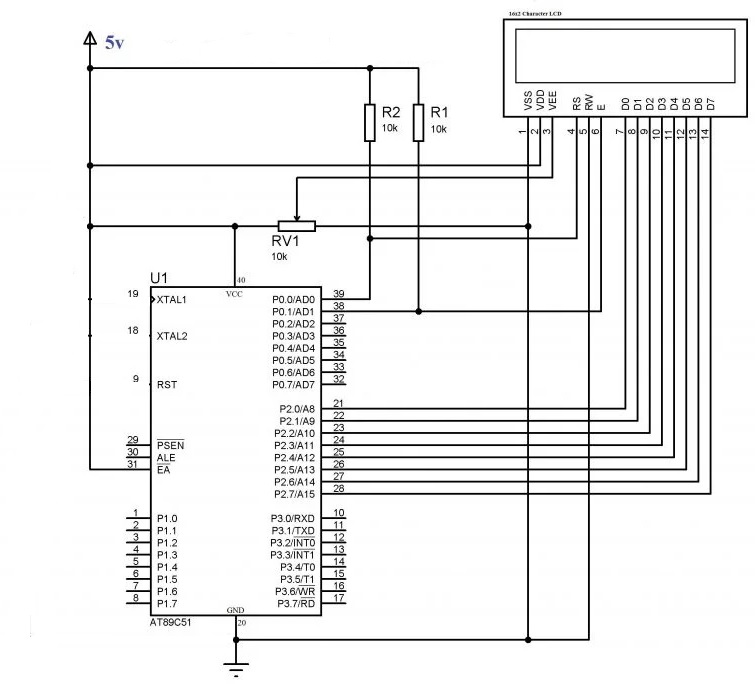

Hardware Connection:
Program:
#include<reg51.h>
/* program by udaya prakash jayaraman */
/* Configure the data bus and Control pins as per the hardware connection
Databus is connected to P2_0:P2_7 and control bus P0_0:P0_2*/
#define LcdDataBus P2
sbit RS = P0^0;
sbit RW = P0^1;
sbit EN = P0^2;
/* local function to generate delay */
void delay(int k)
{
unsigned int i, j;
for(i=0;i<k;i++)
{
for(j=0;j<100;j++);
}
}
/* Function to send the command to LCD */
void Lcd_CmdWrite( char cmd)
{
LcdDataBus=cmd; // Send the command to LCD
RS=0; // Select the Command Register by pulling RS LOW
RW=0; // Select the Write Operation by pulling RW LOW
EN=1; // Send a High-to-Low Pusle at Enable Pin
delay(15);
EN=0;
delay(1000);
}
/* Function to send the Data to LCD */
void Lcd_DataWrite( char dat)
{
LcdDataBus=dat; // Send the data to LCD
RS=1; // Select the Data Register by pulling RS HIGH
RW=0; // Select the Write Operation by pulling RW LOW
EN=1; // Send a High-to-Low Pusle at Enable Pin
delay(15);
EN=0;
delay(1000);
}
int main()
{
char i,a[]={"Udaya Prakash!"};
Lcd_CmdWrite(0x38); // enable 5x7 mode for chars
Lcd_CmdWrite(0x0E); // Display OFF, Cursor ON
Lcd_CmdWrite(0x01); // Clear Display
Lcd_CmdWrite(0x80); // Move the cursor to beginning of first line
Lcd_DataWrite('H');
Lcd_DataWrite('e');
Lcd_DataWrite('l');
Lcd_DataWrite('l');
Lcd_DataWrite('o');
Lcd_DataWrite(' ');
Lcd_DataWrite('F');
Lcd_DataWrite('R');
Lcd_DataWrite('I');
Lcd_DataWrite('E');
Lcd_DataWrite('N');
Lcd_DataWrite('D');
Lcd_DataWrite('S');
Lcd_CmdWrite(0xc0); //Go to Next line and display Good Morning
for(i=0;a[i]!=0;i++)
{
Lcd_DataWrite(a[i]);
}
while(1);
}
